Arcangelo's Tube Map
A New Map in London Underground's Iconic Style

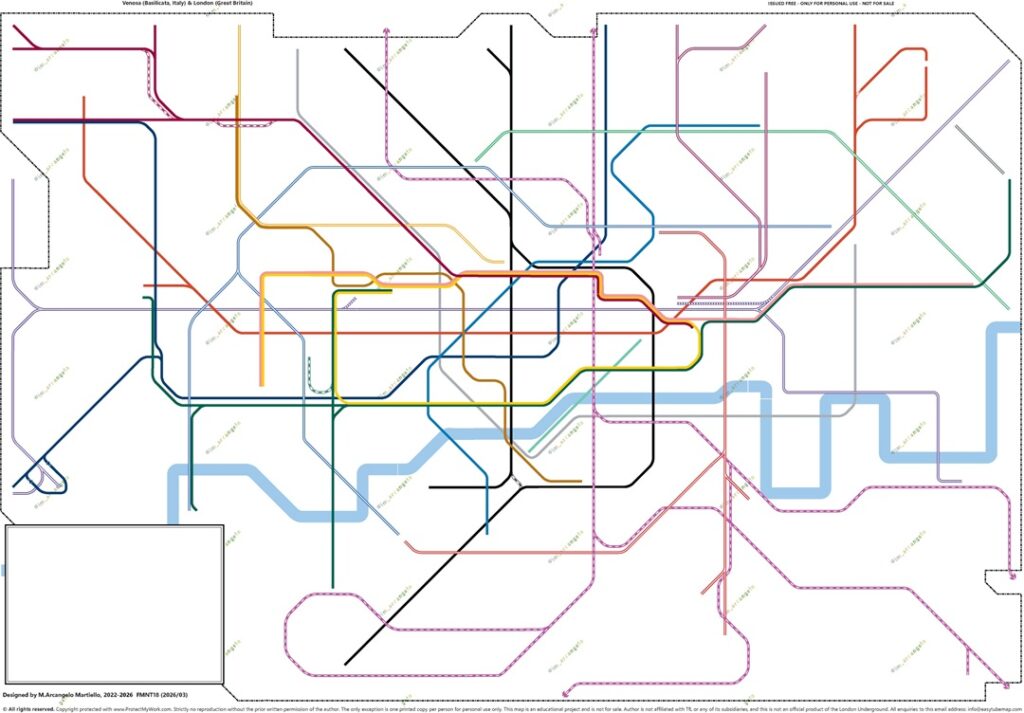

This new tube map has been redrawn in the classic octolinear style of London, which uses only horizontal, vertical, and 45-degree diagonal lines. It distinctively employs a predetermined grid to reinforce symmetry and enhance readability.
As a tribute to the pioneering works of Harry Beck and Paul Garbutt, who crafted their iconic maps with simple tools, the initial draft was created using colouring pens and paper before undergoing digital refinement. An Improved Depiction of the London Underground Network

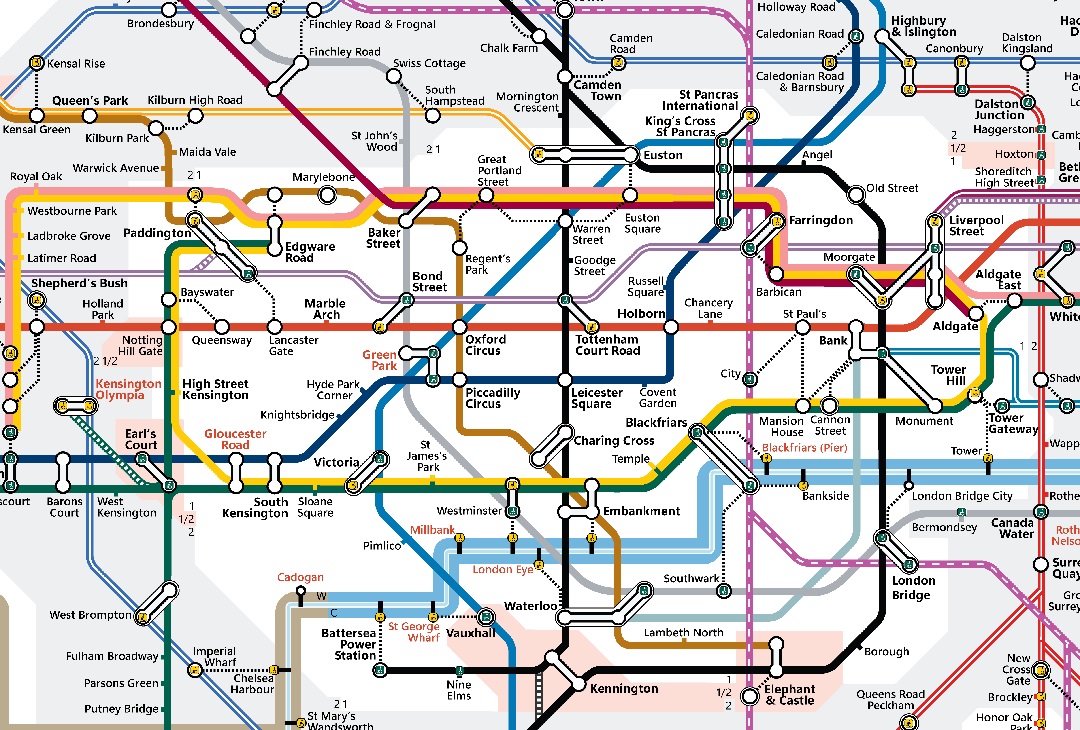

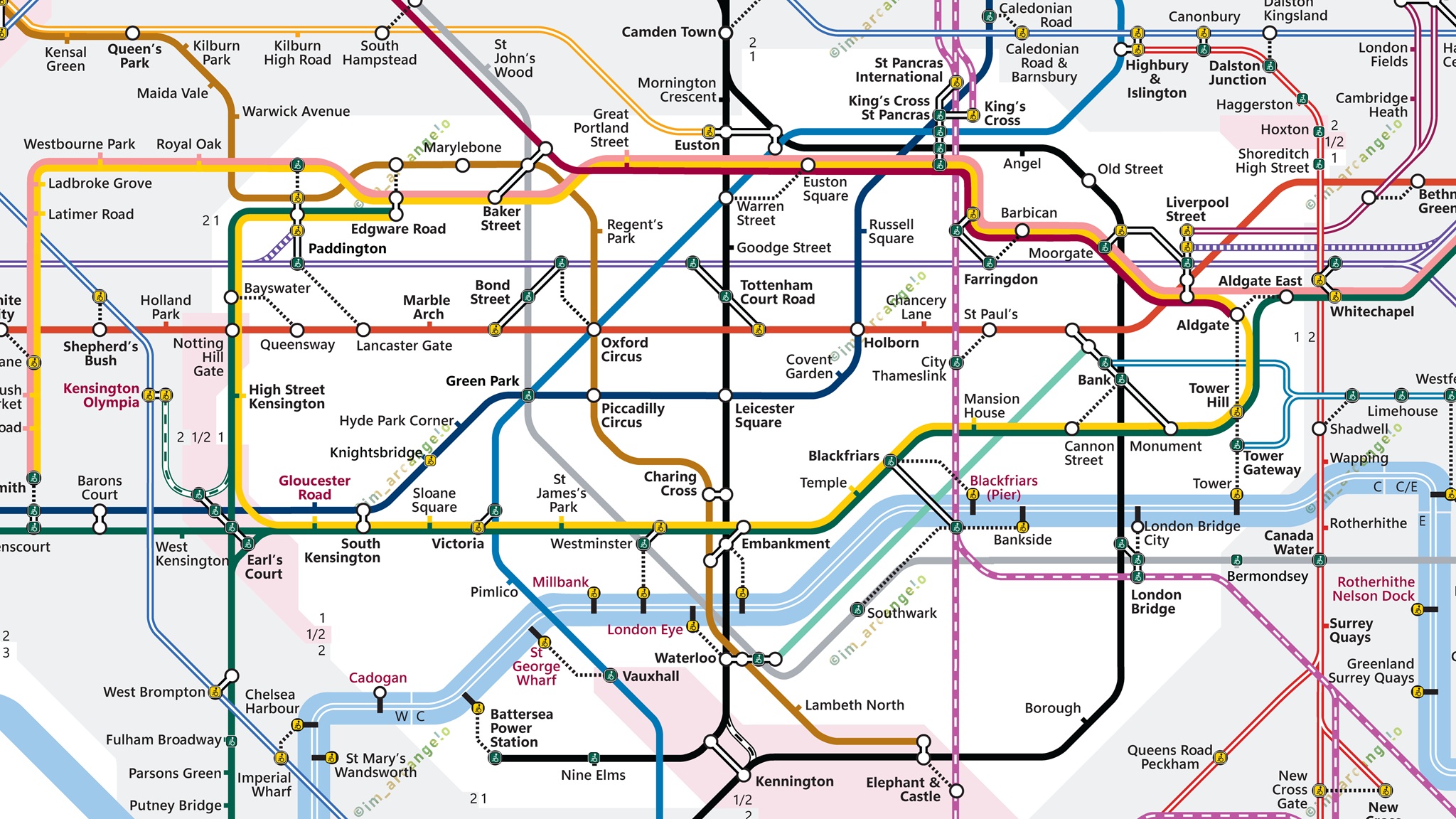

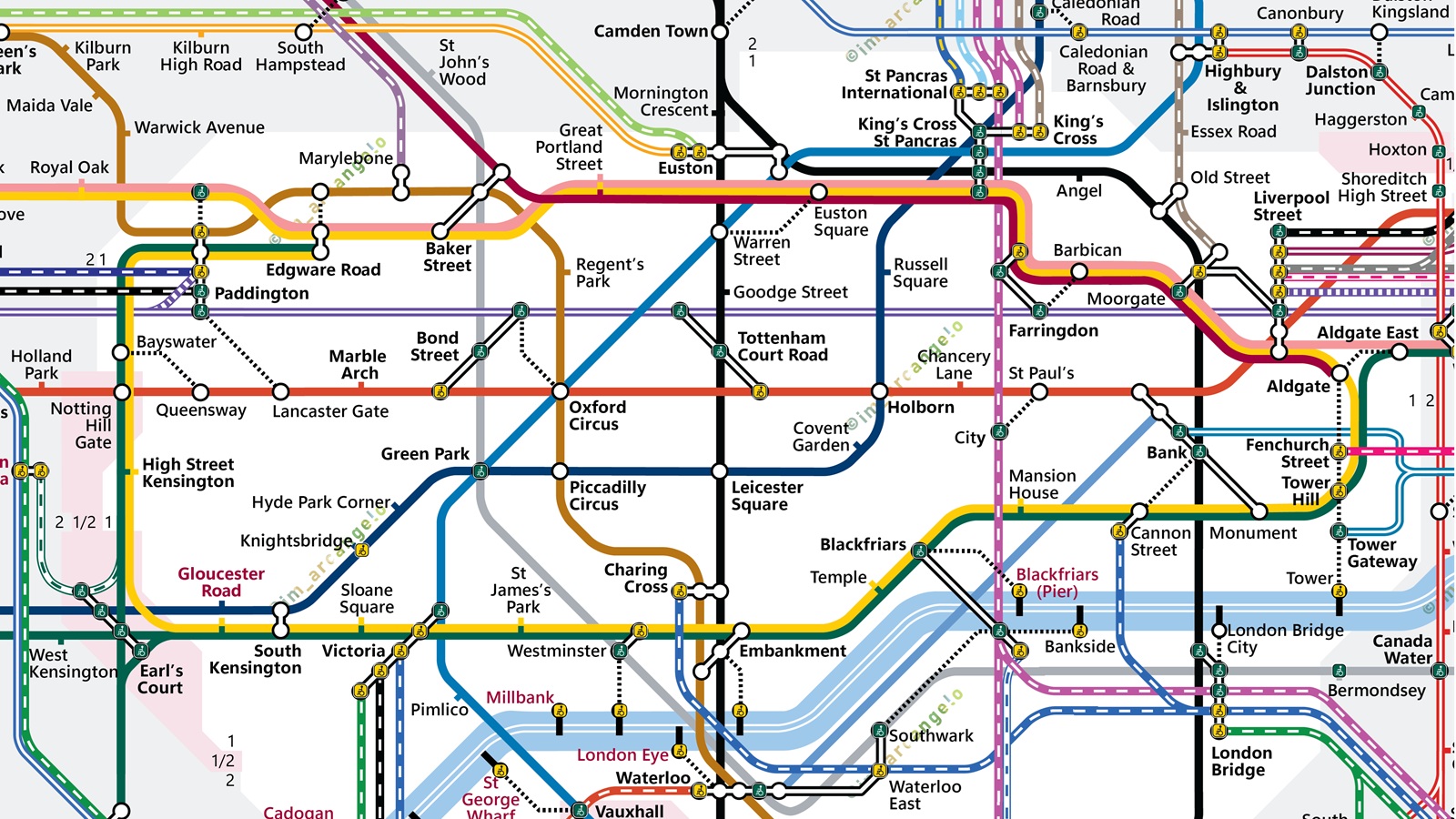

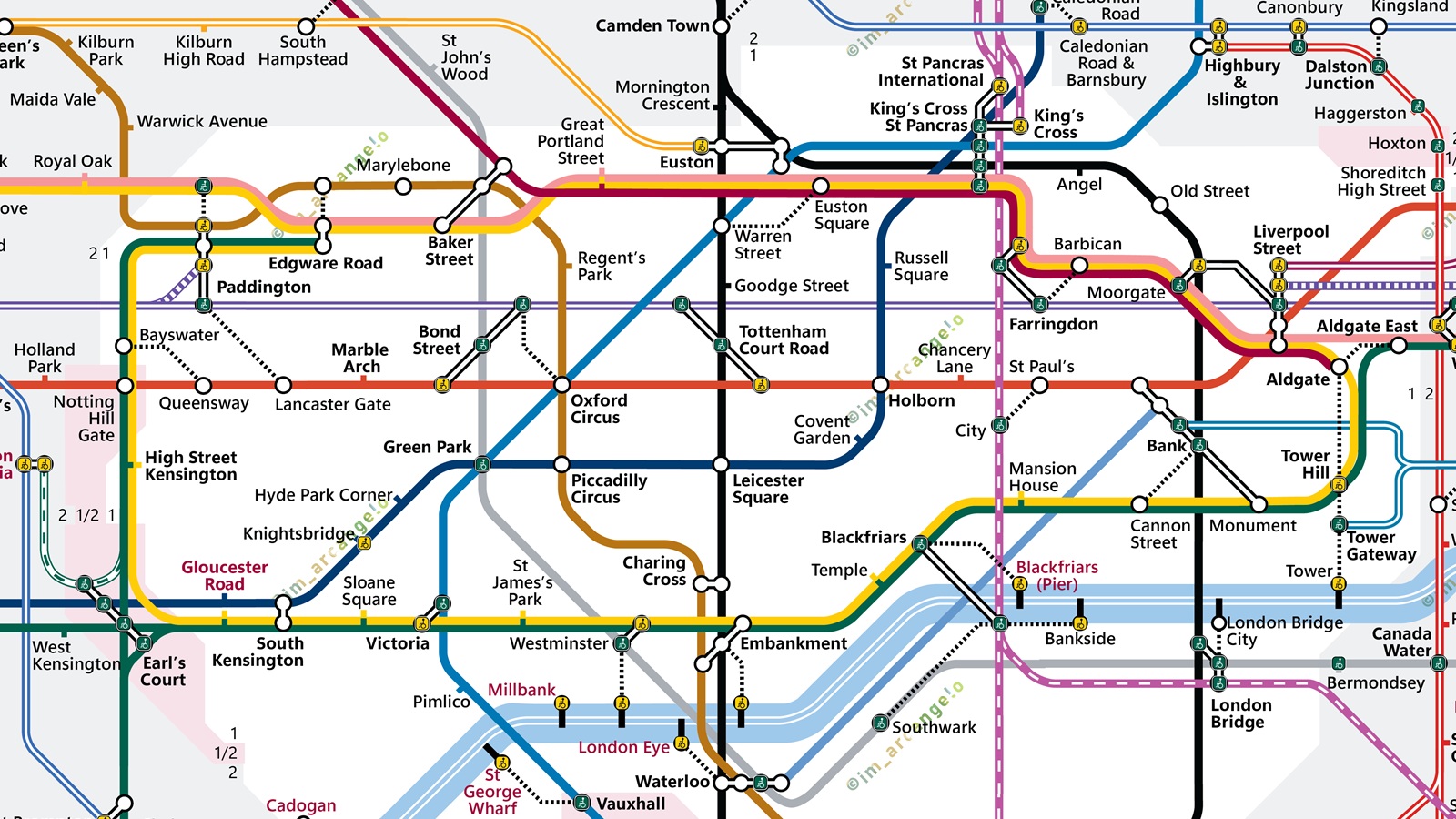

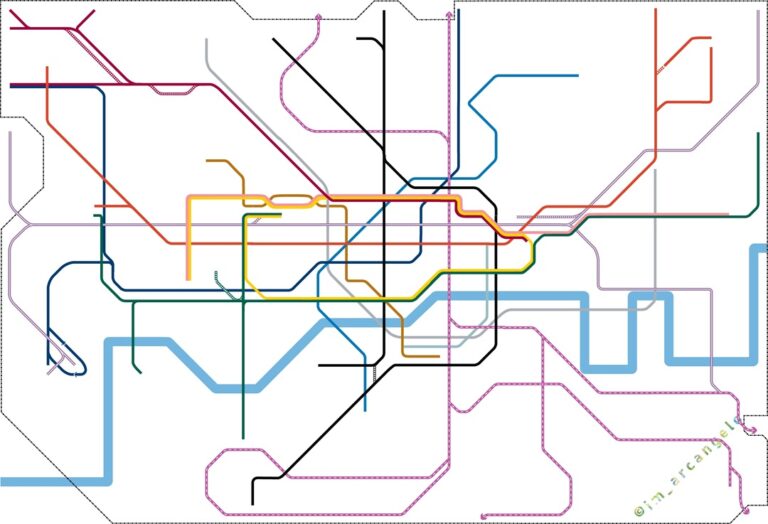

The map is structured around the traditional main features of the underground network. The Circle line is depicted with an enlarged and stylised geographical shape, echoing the first Beck map. The horizontal (Central line) and vertical (Northern line) axes feature straight lines reminiscent of the original Garbutt design. The new supplementary axes (Elizabeth line, Thameslink) have been depicted with innovative configurations. These four axes are vital routes for navigating London, requiring clear representations, especially in the central sections. Positioned at the very centre of the map, the visual landmark of the West End "cross shield" of lines provides immediate orientation.

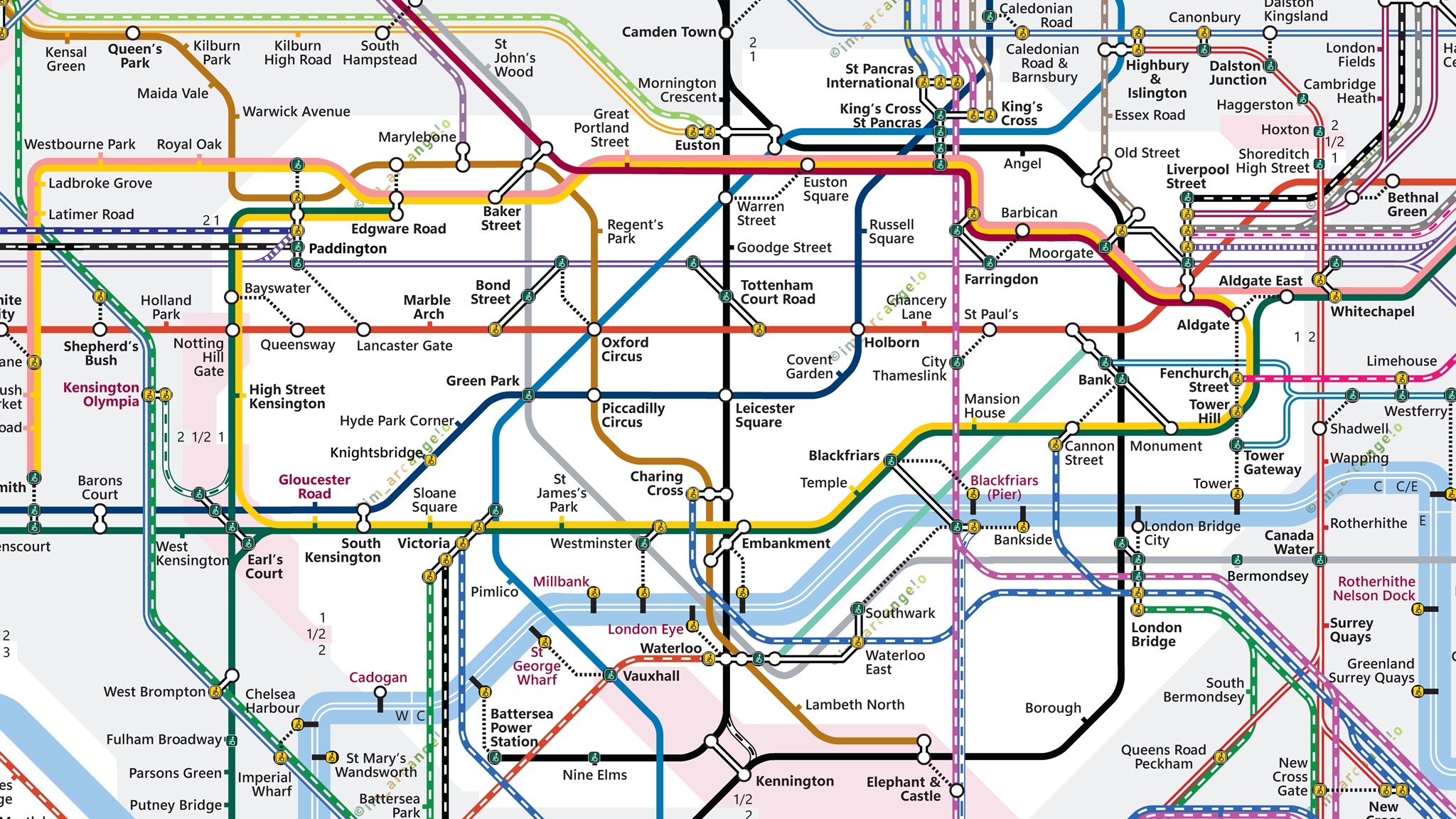

The use of a grid with a fixed minimum distance between lines has resulted in expanded and clearer intersections, improving readability. Additional information such as rail stations, accessibility, and fare zones are presented in a manner that is not visually intrusive. Nevertheless, the map includes all information displayed on the current TfL Tube Map, along with additional details such as the Riverbus service, peak services of the Elizabeth Line, and plenty of additional walking links, promoting their use.
Mapping Clarity: Fifteen Revisions and Eight Versions

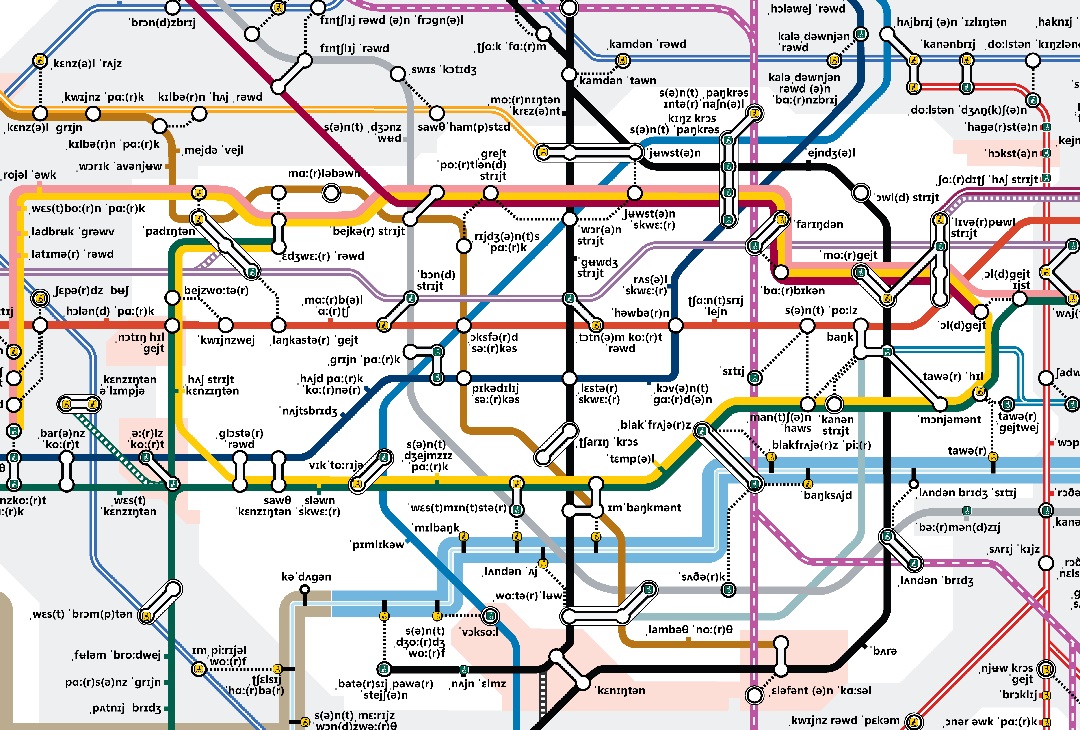

Arcangelo's diagram of lines has undergone regular revisions since the completion of the first digital map (MFNS01) in July 2023. The current revision (MFNS15), released in July 2025, includes a series of changes from the previous version, such as a straightened Elizabeth Line between Whitechapel and Hayes & Harlington, a straightened Jubilee Line between Baker Street and Swiss Cottage, and a new Metropolitan Line configuration in the north west including limited services. Additional updates include revised configurations at Stratford, Bethnal Green, and Liverpool Street stations. The walking link between Oxford Circus and Bond Street has been added, while others (e.g., Shepherd's Bush to Shepherd's Bush Market) have been removed. The map has been produced in numerous versions, including the Legacy, and the Centenary Tube Map.

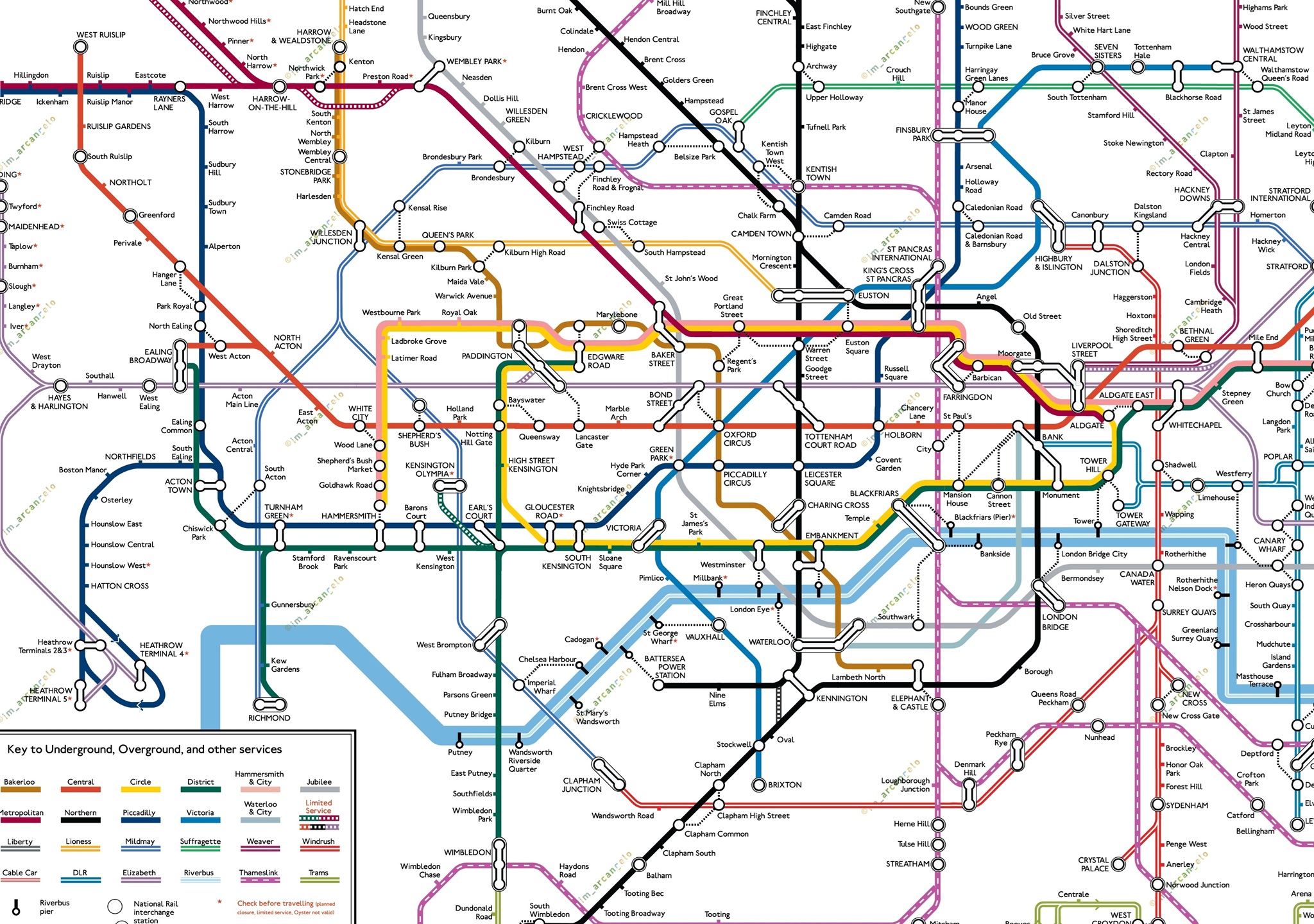

The Legacy Tube Map presents the current Underground network with a classic look, featuring a Johnston-like font and no fare zones.

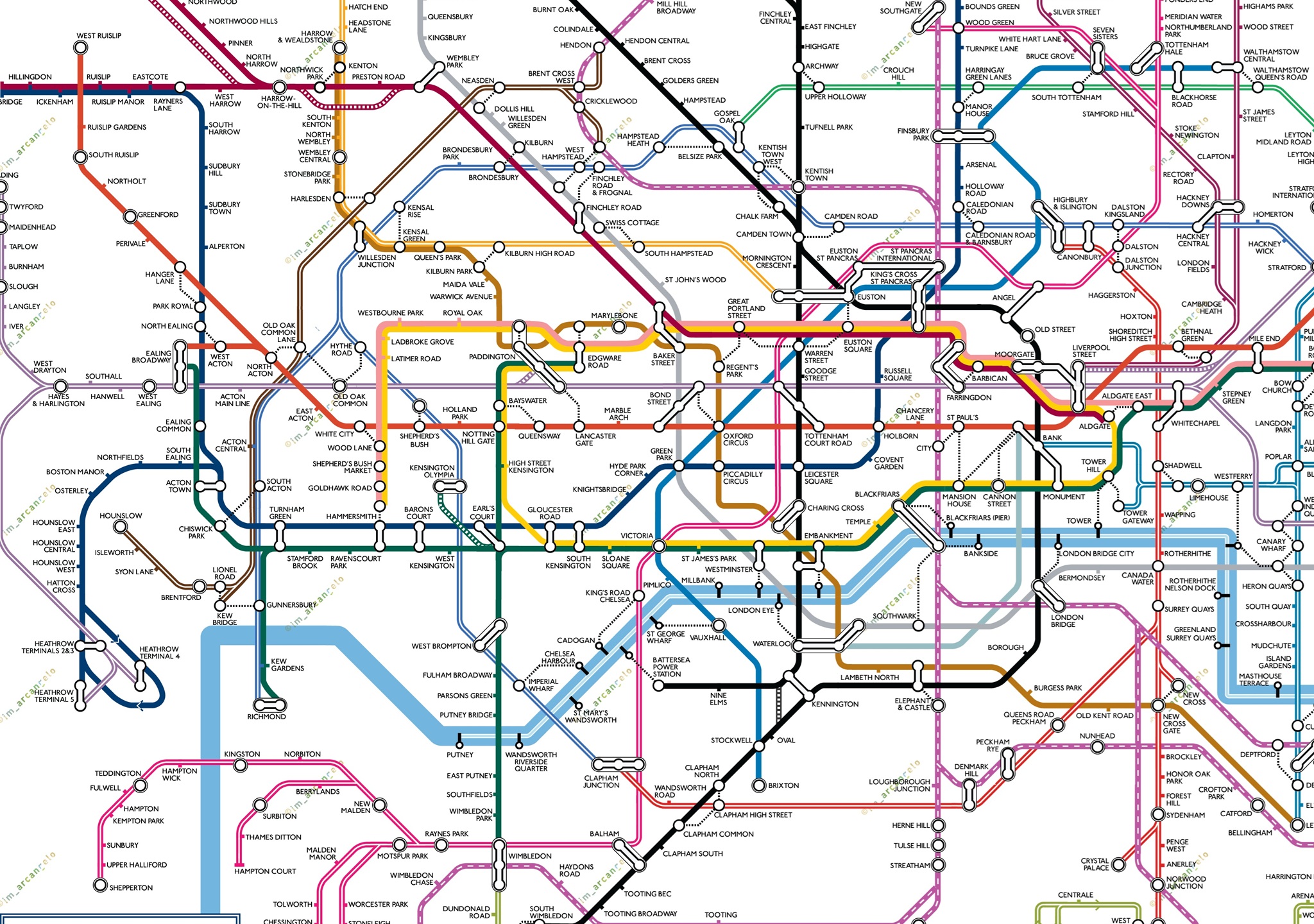

The Centenary Tube Map depicts how the network might appear in the 2030s - 100 years after the first official Beck Tube Map - if all planned and proposed projects were realised, including the Bakerloo extension, the West London Orbital, and the ambitious Crossrail 2. Octolinear Tube Maps
From H. Beck to M. Noad: a history of accuracy and simplicity
